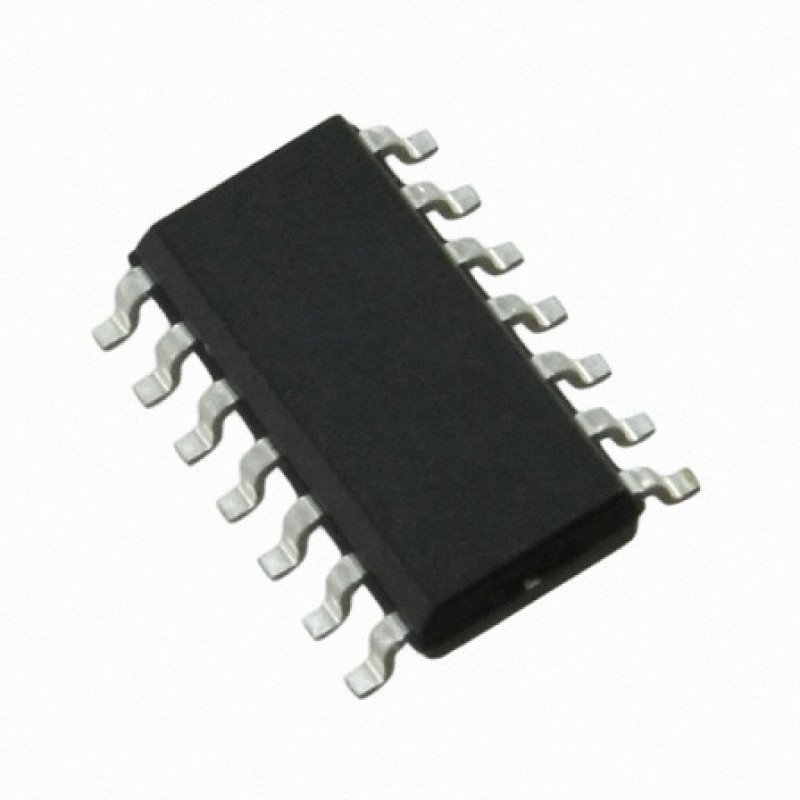

LM324 IC SMD Package Low Power Quad Op-Amp IC
$ 1.03
LM324 IC SMD Package Low Power Quad Op-Amp IC.The LM324 series consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM324 series can be directly operated off of the standard 5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.Characteristics:- In the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltageThe unity gain cross frequency is temperature compensatedThe input bias current is also temperature compensatedSpecification:-ParameterValueSupply Voltage32VDifferential Input Voltage32VInput Voltage?0.3V to 32VOperating Temperature Range?25?C to 85?CStorage Temperature Range?65?C to 150?CLead Temperature DIP260?Clm324-ic-datasheet*product image for illustration purposes only. actual product may vary.
