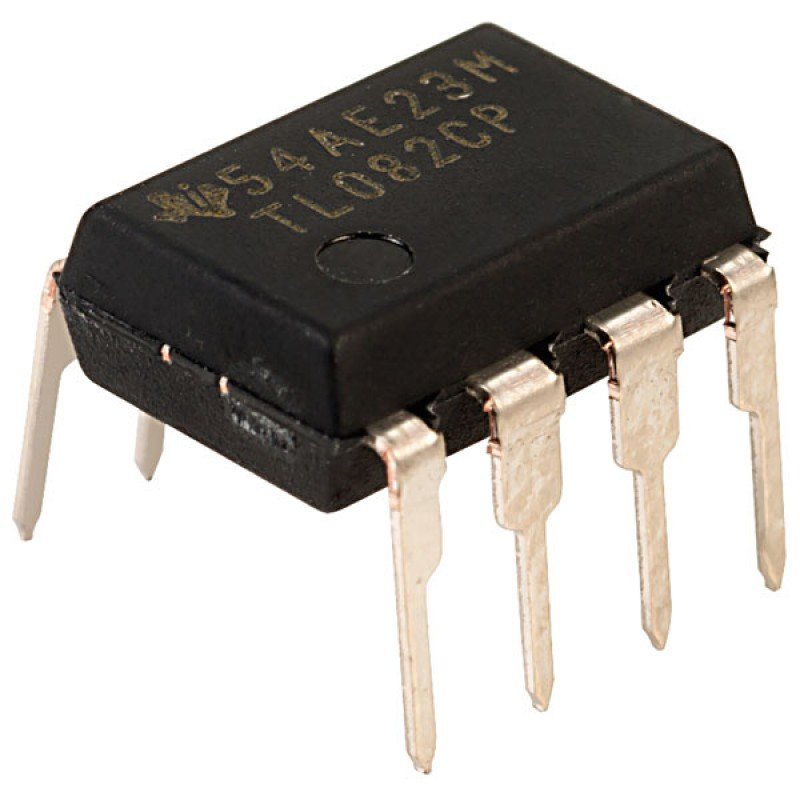

TL082 JFET Input Operational Amplifier (Op-Amp) IC DIP-8 Package

The TL082 JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.Features:-Low Power Consumption: 1.4 mA/ch TypicalWide Common-Mode and Differential Voltage RangesLow Input Bias Current: 30 pA TypicalLow Input Offset Current: 5 pA TypicalOutput Short-Circuit ProtectionLow Total Harmonic Distortion: 0.003% TypicalHigh Input Impedance: JFET Input StageLatch-Up-Free OperationHigh Slew Rate: 13 V/?s TypicalCommon-Mode Input Voltage RangeIncludes VCC Specification:-ParameterSpecificationNumber of channels (#)2Total supply voltage (Max) ( 5V=5, /-5V=10)30Total supply voltage (Min) ( 5V=5, /-5V=10)7Rail-to-railIn to V GBW (Typ) (MHz)3Slew rate (Typ) (V/us)13Vos (offset voltage @ 25 C) (Max) (mV)6Iq per channel (Typ) (mA)1.4Vn at 1 kHz (Typ) (nV/rtHz)18RatingSee Data SheetOperating temperature range ©-40 to 85, 0 to 70Offset drift (Typ) (uV/C)18Input bias current (Max) (pA)200CMRR (Typ) (dB)86Output current (Typ) (mA)10tl082-ic-datasheet* product image for illustration purposes only. actual product may vary.
