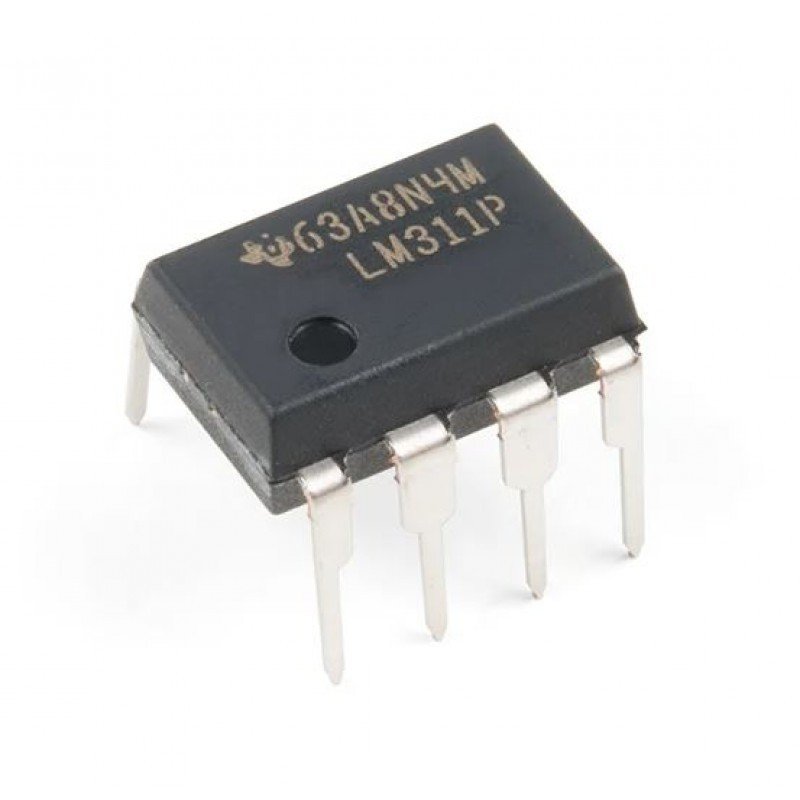

LM311 Voltage Comparator IC DIP-8 Package

LM311 Voltage Comparator IC DIP-8 Package.The LM311 devices are single high-speed voltage comparators. These devices are designed to operate from a wide range of power supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC or VCC?. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.Features:-Fast Response Time: 165 nsStrobe CapabilityMaximum Input Bias Current: 300 nAMaximum Input Offset Current: 70 nACan Operate From Single 5-V SupplyAvailable in Q-Temp Automotive – High-Reliability Automotive Applications – Configuration Control and Print Support – Qualification to Automotive StandardsOn Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.Specification:-ParameterMinMaxUnit Supply Voltage-1818VDifferential input voltage±30VInput voltage±15VVoltage from emitter output to VCC–30VVoltage from collector output to VCC–40Vlm311-ic-datasheet*product image for illustration purposes only. actual product may vary.
