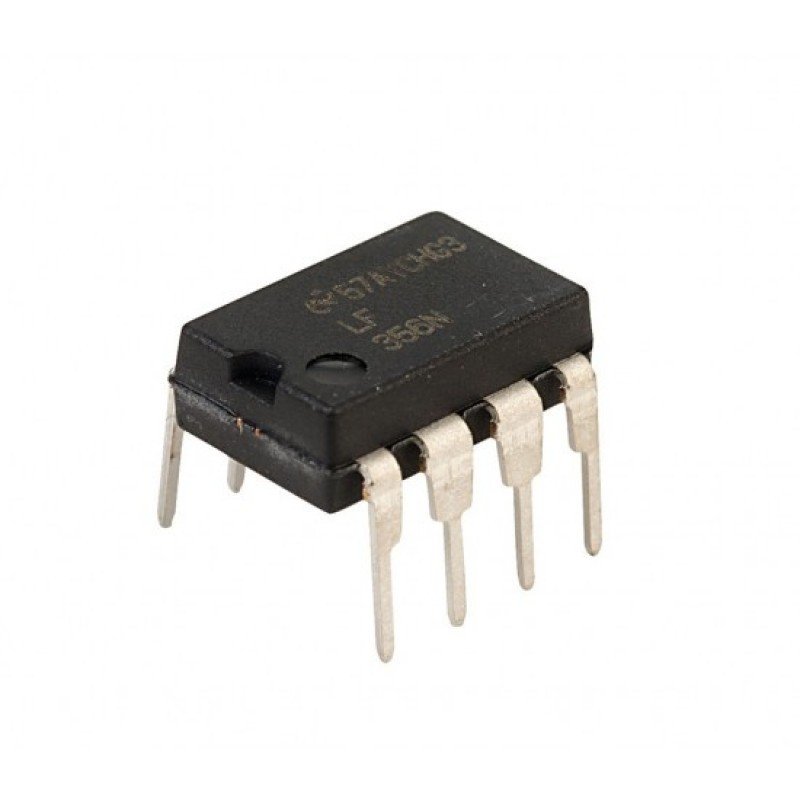

LF356 JFET Input Op-Amp IC DIP-8 Package

The LF356 device are the first monolithic JFET input operational amplifiers to incorporate well matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.Advantages Replace Expensive Hybrid and Module FET Op AmpsRugged JFETs Allow Blow-Out Free Handling Compared With MOSFET Input DevicesExcellent for Low Noise Applications Using Either High or Low Source ImpedanceVery Low 1/f CornerOffset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic AmplifiersNew Output Stage Allows Use of Large Capacitive Loads (5,000 pF) Without Stability ProblemsInternal Compensation and Large Differential Input Voltage CapabilityFeatures :-Low Input Bias Current: 30 pALow Input Offset Current: 3 pA High Input Impedance: 1012 ? Low Input Noise Current: 0.01 pA/?HzHigh Common-Mode Rejection Ratio: 100 dBLarge DC Voltage Gain: 106 dBUncommon Features Extremely Fast Settling Time to 0.01%: 1.5 ?sFast Slew Rate: 12 V/µsWide Gain Bandwidth: 5 MHz Low Input Noise Voltage: 12 nV/?HzSpecification:-ParameterMinMaxUnit Supply Voltage±18VDifferential input voltage±30VOutput short-circuit (to ground)ContinuousOperating temperature-40125°CSoldering information (lead temp.)260°CStorage temperature-65150°CInput voltage±16Vlf356-ic-datasheet* product image for illustration purposes only. actual product may vary.
