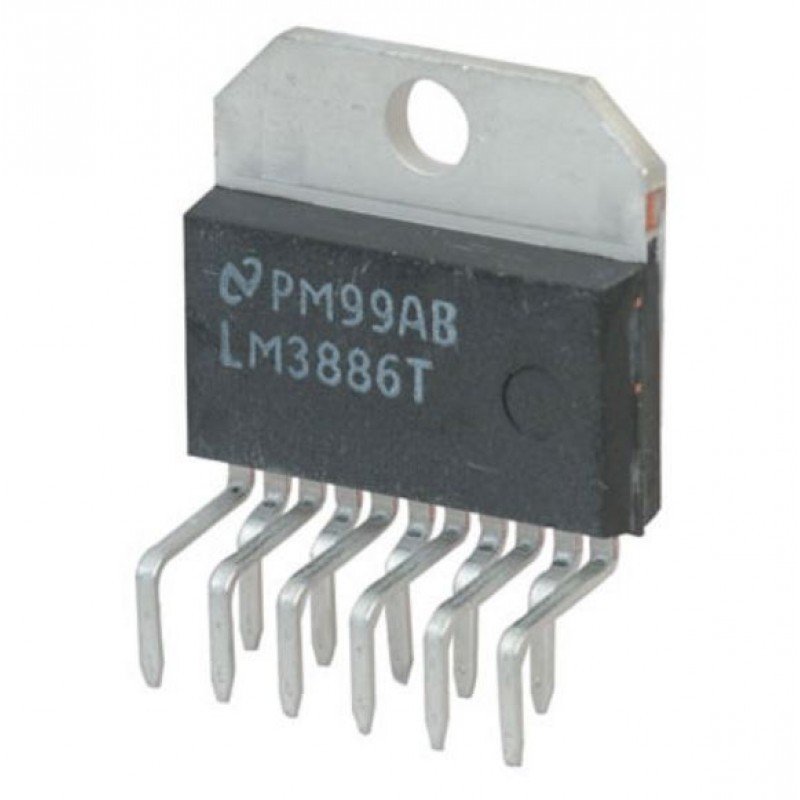

LM3886 68W High Performance Audio Power Amplifier IC TO-220-11 Package
$ 90.86
LM3886 68W High Performance Audio Power Amplifier IC TO-220-11 Package.The LM3886 is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4? load and 38W into 8? with 0.1% THD N from 20Hz–20kHz.The performance of the LM3886, utilizing its Self Peak Instantaneous Temperature (°Ke) (SPiKe) protection circuitry, puts it in a class above discrete and hybrid amplifiers by providing an inherently, dynamically protected Safe Operating Area (SOA). SPiKe protection means that these parts are completely safeguarded at the output against overvoltage, undervoltage, overloads, including shorts to the supplies, thermal runaway, and instantaneous temperature peaks.The LM3886 maintains an excellent signal-to-noise ratio of greater than 92dB with a typical low noise floor of 2.0µV. It exhibits extremely low THD N values of 0.03% at the rated output into the rated load over the audio spectrum, and provides excellent linearity with an IMD (SMPTE) typical rating of 0.004%.Features:-68W Cont. Avg. Output Power into 4? at VCC = ±28V38W Cont. Avg. Output Power into 8? at VCC = ±28V50W Cont. Avg. Output Power into 8? at VCC = ±35V135W Instantaneous Peak Output Power CapabilitySignal-to-Noise Ratio ? 92dBAn Input Mute FunctionOutput Protection from a Short to Ground or to the Supplies via Internal Current Limiting CircuitryOutput Over-Voltage Protection against Transients from Inductive LoadsSupply Under-Voltage Protection, not Allowing Internal Biasing to Occur when |VEE| |VCC| ? 12V, thus Eliminating Turn-On and Turn-Off Transients11-Lead TO-220 PackageWide Supply Range 20V – 94VSpecifications:-ParameterSpecificationPart numberLM3886Audio input typeAnalog InputArchitectureClass-ABSpeaker channels (Max)MonoPower stage supply (Min) (V)20Power stage supply (Max)(V)94Output power (W)68Load (Min) (ohms)4SNR (dB)110THD N @ 1 kHz (%)0.03Iq (Typ)n(mA)50Control interfaceHardwareClosed/open loopOpenAnalog supply (Min)(V)20Analog supply (Max)(V)84Power to parallel bridge tied load (Max)(W)68PSRR (dB)120Operating temperature range (C)0 to 70RatingSee Data Sheetlm3886-ic-datasheet*product image for illustration purposes only. actual product may vary.
