TDA2002 8W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

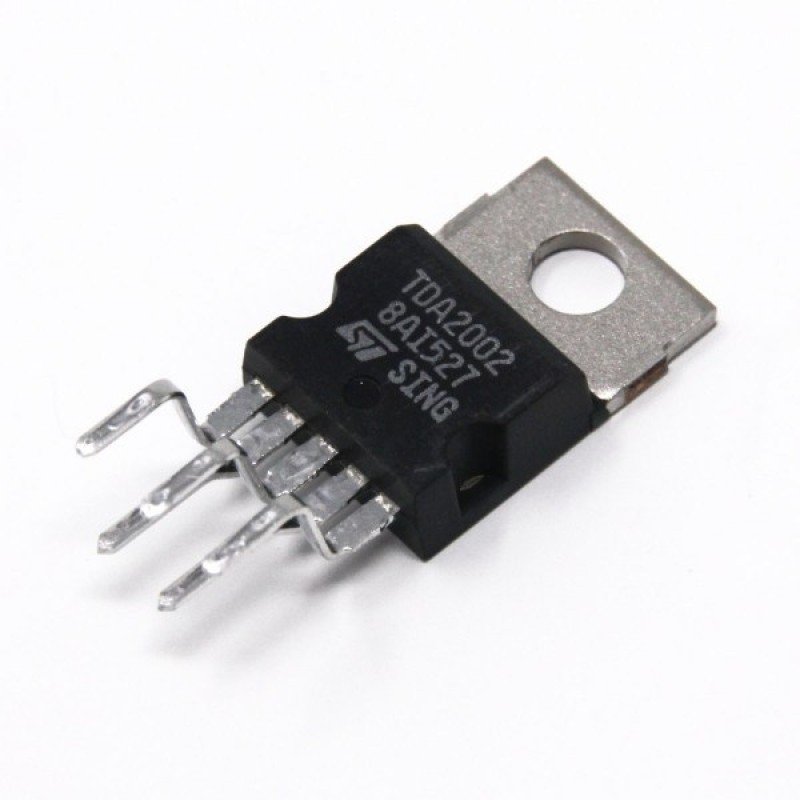

The TDA2002 is a class-B audio power amplifier in a Pentawatt package designed for driving low impedance loads (down to 1.6 ohm).This device provides a high output current capability (up to 3.5A) and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included.Features:- High output currentVery low harmonic and crossover distortionShort-circuit protectionThermal shutdownHigh ReliabilitySpecifications:-SymbolParameterValueUnitVSPeak Supply Voltage40VVSDC Supply Voltage28VVSOperational Supply Voltage18VIOPeak Output Current (Internally Limited)3.5APTOTTotal power dissipation at T case = 90 °C15WTSTG, TJStorage and junction temperature– 40 to 150°Ctda2002-ic-datasheet* product image for illustration purposes only. actual product may vary.
