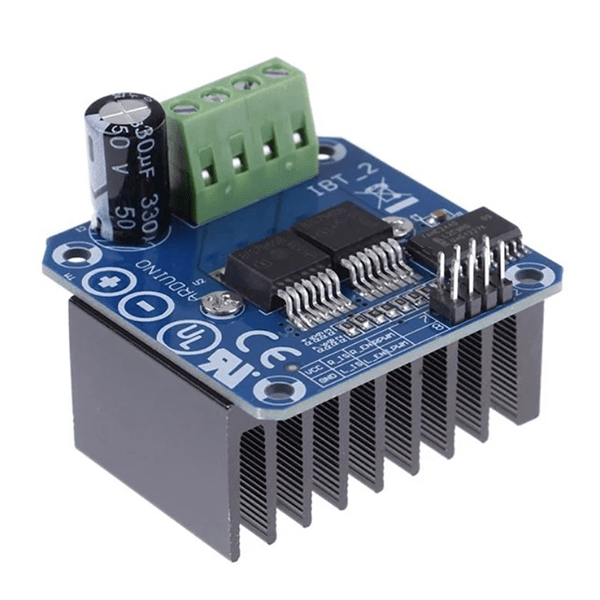

BTS7960 43A H-Bridge High Power Stepper Motor Driver Module

The BTS7960 is an H-bridge motor driver module capable of handling high currents, up to 43A. It’s commonly used to control high-power motors such as stepper motors and DC motors in various applications like robotics, CNC machines, and electric vehicles. As an H-bridge driver, it allows bi-directional control of the motor, meaning it can drive the motor forward and reverse. The “H-bridge” configuration consists of four switches that can be controlled to determine the direction of current flow through the motor windings. Key features of the BTS7960 module typically include: 1.High Current Handling: Capable of driving motors with currents up to 43A. 2.PWM Control: Allows for speed control through pulse-width modulation (PWM). 3.Overcurrent Protection: Built-in protection mechanisms to safeguard the driver and motor against excessive currents. 4.Thermal Shutdown: Protection against overheating, shutting down the driver if temperatures rise beyond a safe threshold. 5.Logic Level Inputs: Accepts low voltage control signals, making it compatible with microcontrollers and other digital control systems. When using the BTS7960 with a microcontroller, you can send control signals to the module to determine the motor’s direction and speed. By adjusting the PWM duty cycle and controlling the direction pins, you can achieve precise motor control. However, it’s essential to ensure that the power supply and wiring can handle the high currents associated with this driver module to prevent damage or safety hazards. Package Includes : 1 x BTS7960 43A H-Bridge High Power Stepper Motor Driver Module.
