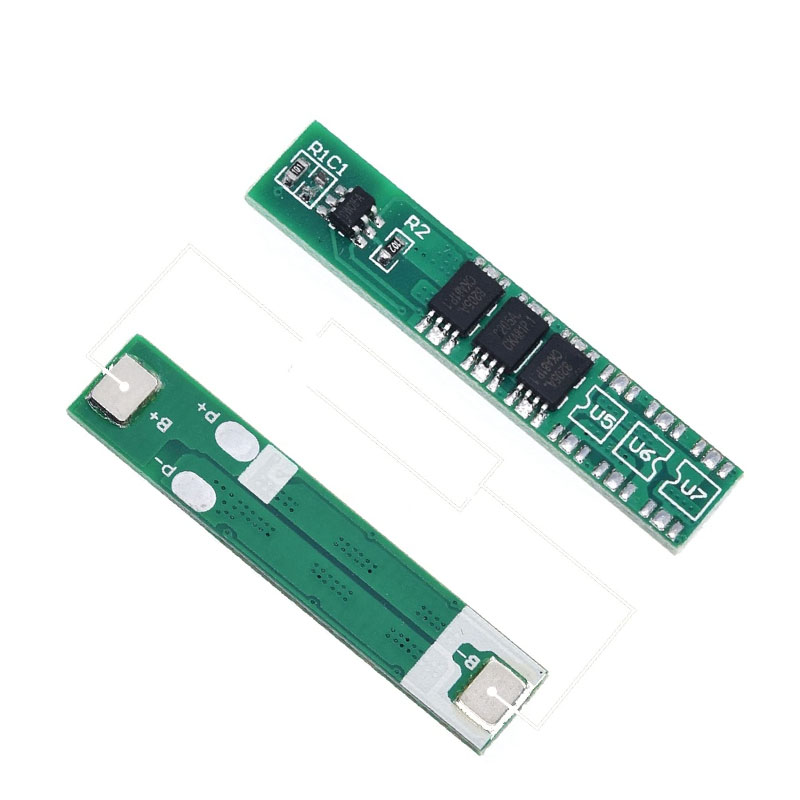

1S 5A BMS for Lithium Ion 3.7V With Nickel Strip

1S 5A BMS for Lithium Ion 3.7V With Nickel Strip Product Description 3MOS Operation parameters: Charging test voltage: 4.25 / – 0.05 V Charging: release of the 4.23 / – 0.05 V A discharge detection voltage: 2.45 / – 0.1 V Maximum sustained current: 6 a Over-current detection current: 7.5 A Charging voltage: 4.2 V Product size: 35 * 7.4 * 7.4 MM IC components: DW01 8205 * 3 a Main functions: The overcharge protection, discharge protection, short circuit protection, over current protection. Connection details: B battery positive electrode. B – connect battery cathode. P enter the anode for battery output P – for battery output input cathode 4MOS: Over charge voltage: 4.25±0.05V Over charge release voltage:4.23±0.05V Over discharge voltage:2.54±0.1V Maximal continuous charging/discharge current: 7.5A Maximal Discharging current: 10A Size: L35*W7*T2mm Weight: 10g Technical parameters: 6MOS: Overcharge detection voltage: 4.25 0.05V Overcharge disconnection voltage: 4.23 0.05V Over discharge detection voltage: 2.45 0.1v Maximum continuous current: 12A Overcurrent detection current: 15A Charging voltage: 4.2v Product size: 35*7.6*2MM IC component: DW01 8205A Main functions: Overcharge protection, over-discharge protection, short circuit protection, and overcurrent protection. Wiring instructions: B connects the positive electrode of the battery. B- connect the battery cathode. P is the input positive pole of the battery output P- is the output-input cathode of the battery pack Package Include  :- 1X  1S 5A BMS with Nickel Strip SKU: CE-23-00174 Category: BMS Tags: 1S 2A bms, 3.7v battery, BMS
